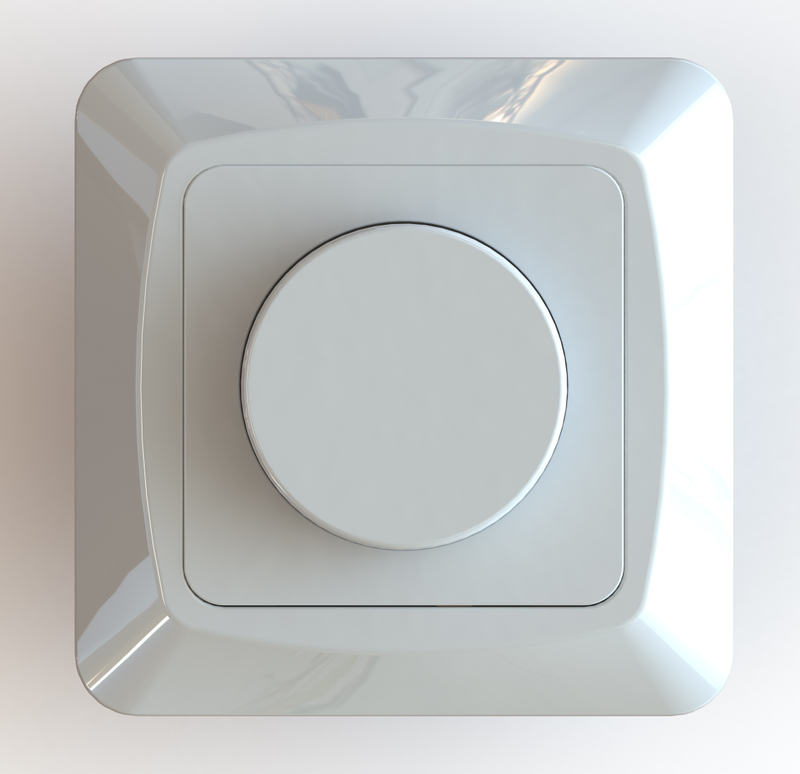

Flush-type dimmer for fixed installation ETM321PV2

230V incandescent lamps (ohmic load, R): 25-315W
230V halogen lamps (ohmic load, R): 25-315W
12V low-voltage halogen lamps with dimmable wound (conventional) transformer (inductive
load, L): Not suitable
12V low-voltage halogen lamps with electronic transformer (capacitive load, C): 25-315VA
(max. 3 transformers, 105W)
Dimmable LED lamp (trailing edge, RC mode): 10-100VA
Dimmable LED lamp (leading edge, RL mode): Not suitable
Min. brightness controllable
trailing edge dimming
1pole 2way
Availability:
Quantity:
  • ETM321PV2

  • ETMAN

Def

Description

Type



1

EF000005

Assembly arrangement

6 EV006345

Basic element with central cover plate

2

EF000006

Method of operation

1 EV000251

Turn/push button

3

EF009573

Number of modules (module system)

1

4

EF000074

Number of units

1

5

EF012536

App control via Bluetooth

NO

6

EF012162

Dimming phase cut-on

YES

7

EF012161

Dimming phase cut-off

YES

8

EF003889

Serial dimmer

NO

9

EF001508

Type of load

6 EV000028

Universal

10

EF003876

Substation input

NO

11

EF003867

Light value memory

NO

12

EF003910

Applicable with button

NO

13

EF003906

Applicable with movement sensor

YES

14

EF003909

Applicable with presence indicator

YES

15

EF003911

Applicable with time switch/timer

YES

16

EF003907

Applicable with transmission button

NO

17

EF003908

Applicable with infrared button

NO

18

EF016708

Min. brightness controllable

YES

19

EF000003

Mounting method

1 EV000383

Flush-mounted

20

EF002442

Type of fastening

2 EV006354

Mounting with screw

21

EF002169

Material

1 EV000139

Plastic

22

EF001257

Material quality

2 EV000403

Thermoplastic

23

EF000025

Halogen free

YES

24

EF000139

Surface protection

9 EV006034

Untreated

25

EF006569

Surface finishing

1 EV006395

Glossy

26

EF000007

Colour

23 EV000202

White

27

EF003882

RAL-number (similar)

9003

28

EF006243

Transparent

NO

29

EF006755

Suitable for degree of protection (IP)

2 EV006405

IP20

30

EF004293

Impact strength

8 EV006813

IK07

31

EF005127

Nominal voltage

230V~

32

EF000416

Frequency

50Hz

33

EF006144

Control voltage

N/A

34

EF012754

Nominal power resistive load

315W

35

EF012755

Nominal power inductive load

315VA

36

EF012756

Nominal power capacitive load

315VA

37

EF015953

Max. switching power LED

100W

38

EF000346

Power consumption

0.5W

39

EF000124

Connection type

4 EV001008

Screwed terminal

40

EF007572

Core cross section

1.5-2.5mm2

41

EF008808

Device width

84mm

42

EF008809

Device height

84mm

43

EF008810

Device depth

46.4mm

44

EF012278

Min. depth of built-in installation box

24.2mm

45

EF014925

Compatible with Apple HomeKit

NO

46

EF014926

Compatible with Google Assistant

NO

47

EF014927

Compatible with Amazon Alexa

NO

48

EF011072

IFTTT support available

NO
