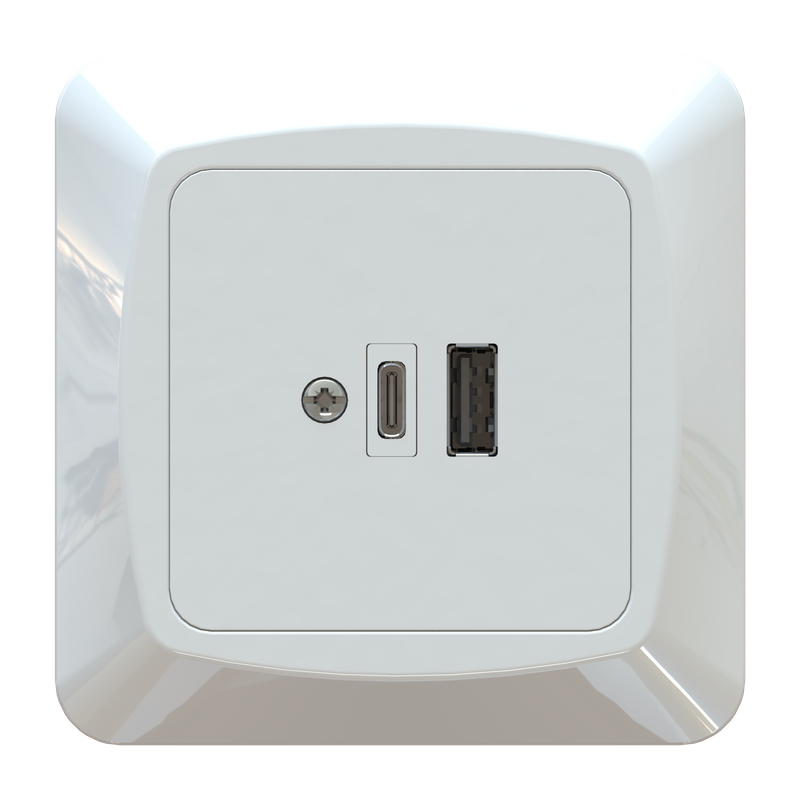

USB power supply

Product information
Product Type ETM708P
Standard EN 62368-1
Directive LVD,EMC, RoHS, REACH, WEEE, BPDs
Certificate CE

Technical specification

Overvoltage category: Ⅲ

USB Data:

Rated input: 220-250V~, 50Hz, 0.8A

Rated output:

Output single A port:

5.0V3.0A, 15.0W;

9.0V3.0A, 27.0W;

12.0V3A, 36.0W;

Output single C port:

5.0V3.0A, 15.0W;

9.0V3.0A, 27.0W;

12.0V3.0A, 36.0W;

15.0V3.0A,45.0W;

20.0V3.25A,65W;

Output A-port + Output C-port:

5.0V3.0A, 15.0W (3.0A in total);

Standby operation: 0.10 W;

Energy efficiency: Average active efficiency: 81.4%;

Efficiency at low load (10%): 65%;

Characteristics

Equipped with Smart IC (intelligent device detection for optimal charging current), output

overcurrent limiting, output overvoltage protection. The USB sockets are only for power supply.

Data transfer does not take place.

Only fits into cc60 boxes, and 1 &2 way surface frame + corner boxes, NOT 3-4 way surface

frames.

ETIM international classification

Def	Description	Type
1	EF000010	Model	1	EV000218	Bus
2	EF000997	Number of ports USB-A	1
3	EF017049	Number of ports USB-C	1
4	EF003983	Operating voltage	230V
5	EF000416	Frequency	50
6	EF001315	Max. output current	3250mA
7	EF003933	Output voltage	20V
8	EF000346	Power consumption	0.1W
9	EF000124	Connection type	1	EV001008	Screwed terminal
10	EF000003	Mounting method	1	EV000383	Flush-mounted
11	EF000007	Colour	23	EV000202	White
12	EF000116	RAL-number	9003
13	EF008808	Device width	84mm
14	EF008809	Device height	84mm
15	EF008810	Device depth	27.5mm
16	EF012278	Min. depth of built-in installation box	27.5mm
17	EF006755	Suitable for degree of protection (IP)	2	EV006405	IP20
18	EF004293	Impact strength	8	EV006813	IK07
19	EF023790	Anti-bacterial treatment	NO
