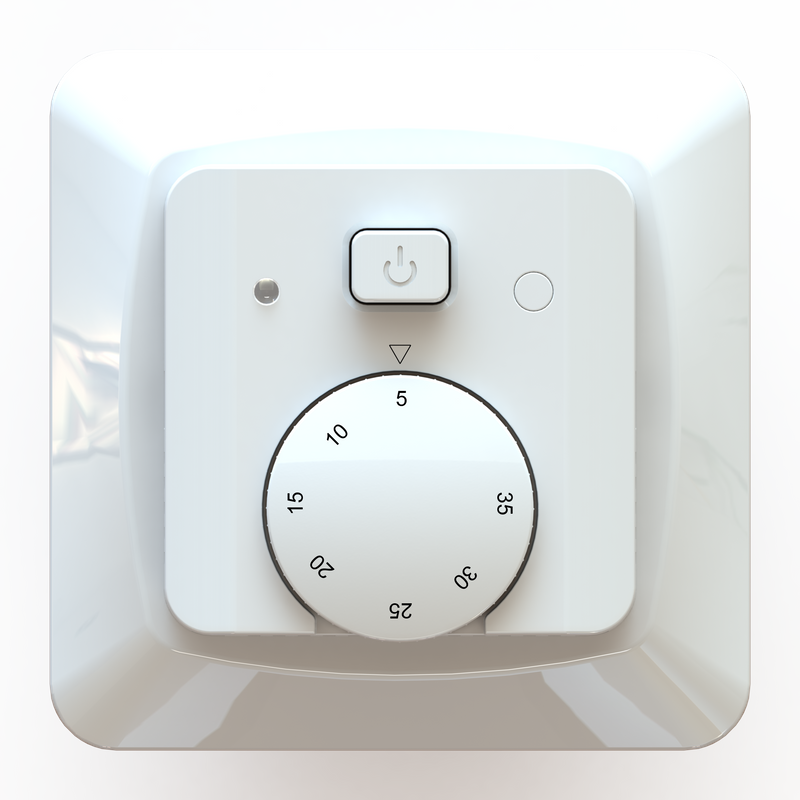

Room Thermostat without display

Name: Room Thermostat without display
Brand: ETMAN
Rating: 5.0 (62 reviews)

Technical specification
Technical Info: 230VAC 16A
Frequency: 50Hz
Load type:
Resistive load：16A 250VAC（AC1）
Product information:
Fit into standard wall boxes (c-c 60mm). By surface fixing, please use surface house (Typed
ETM240P).
By surface fixing, in combination with a switch or others, please use double surface house (Typed
ETM429P).
Thermoplastic center plate 55X55 mm, which fits into Etman “P” series combination plate.

Availability:

Quantity:



Inquire Add to Basket

Model:
ETM510P
Brand:
ETMAN

Product Description

ETIM international classification

Def	Description	Type
1	EF000010	Model	4	EV000154	Other
2	EF001469	Type of power supply	4	EV021412	230 V AC
3	EF000443	Connection	2	EV005544	2-wire
4	EF020643	With receiver	NO
5	EF001836	Measuring range	5°C-35°C
6	EF023999	External sensor	YES
7	EF024000	Thermal feedback	1	EV000494	None
8	EF020644	Control characteristic	3	EV022105	PID
9	EF021772	Suitable for heating	YES
10	EF020681	Number of heater outputs	1
11	EF024798	Suitable for cooling	NO
12	EF020682	Number of cooler outputs	0
13	EF022691	Differential value	2K
14	EF024001	Adjustable differential	NO
15	EF021360	Temperature readable	NO
16	EF020683	With sound indicator	NO
17	EF006254	Sensor/feeler type	2	EV021515	Resistance sensor
18	EF000003	Mounting method	2	EV000383	Flush-mounted
19	EF009573	Number of modules (module system)	1
20	EF000458	With display	NO
21	EF002147	Operation	1	EV008828	Turn
22	EF015604	Concealed operation	NO
23	EF020680	With tap water circuit	NO
24	EF001587	Contact type	1	EV006675	Normally open contact (NO)
25	EF020286	Max. contact voltage	0
26	EF022541	Max. contact load	16A
27	EF005474	Degree of protection (IP)	6	EV006406	IP21
28	EF011959	Degree of protection (NEMA)	11	EV000154	Other
29	EF004663	Explosion-proof	NO
30	EF000007	Colour	15	EV000202	White
31	EF000116	RAL-number	9003
32	EF000040	Height	84mm
33	EF000008	Width	84mm
34	EF000049	Depth	55.4mm
35	EF000551	Diameter	N/A
36	EF010595	Class of the temperature control	2	EV000583	II
37	EF010794	Standby power consumption (solstandby)	0.5W
38	EF014925	Compatible with Apple HomeKit	NO
39	EF014926	Compatible with Google Assistant	NO
40	EF014927	Compatible with Amazon Alexa	NO
41	EF011072	IFTTT support available	NO
